from random import choice
from networkx import (
Graph, bipartite_layout, draw_networkx_nodes, draw_networkx_edges, set_node_attributes,
get_node_attributes, get_edge_attributes, circular_layout
)
from networkx.algorithms.bipartite import random_graph
from networkx.exception import AmbiguousSolution
from altbacken.external.annealing import SimpleSimulatedAnnealing
from altbacken.external.neighbourhood.graph import GraphColoringNeighbourhood
from altbacken.external.temperature import LogarithmicCooling, ExponentialCooling
from altbacken.external.neighbourhood.graph import color_adjustments_for_limited_colors
def show_graph(graph: Graph):
try:
pos = bipartite_layout(graph)
except AmbiguousSolution:
pos = circular_layout(graph)
for edge in graph.edges:
if graph.nodes[edge[0]]["color"] == graph.nodes[edge[1]]["color"]:
graph.edges[edge]["color"] = "red"
else:
graph.edges[edge]["color"] = "white"
draw_networkx_nodes(graph, pos, node_color=get_node_attributes(graph, "color").values())
draw_networkx_edges(graph, pos, edge_color=get_edge_attributes(graph, "color").values())
COLORS: list[str] = [
"#E69F00", # orange
"#56B4E9", # sky blue
"#009E73", # bluish green
"#F0E442", # yellow
"#0072B2", # blue
"#D55E00", # vermilion
"#CC79A7", # reddish purple
"#999999", # gray
]
def fitness(solution: Graph) -> float:
color_count: int = len(set(get_node_attributes(solution, "color").values()))
invalid_edges: int = sum(
1
for source, target in solution.edges
if solution.nodes[source]["color"] == solution.nodes[target]["color"]
)
return (color_count - 2)**2 + invalid_edges
def create_random_graph(n: int=10, m: int=10, p: float=0.2) -> Graph:
graph: Graph = random_graph(n, m, p)
set_node_attributes(graph, COLORS[0], "color")
return graph
graph: Graph = create_random_graph()
annealing: SimpleSimulatedAnnealing[Graph] = SimpleSimulatedAnnealing(
fitness,
GraphColoringNeighbourhood(color_adjustments_for_limited_colors(COLORS)),
ExponentialCooling(10000)
)
annealing_iterations: list[int] = []
annealing.tracer = lambda x: annealing_iterations.append(x.iteration)
annealing_best, annealing_best_value = annealing.simulate(graph.copy())
print(f"Best solution value: {annealing_best_value}")
print(f"Iterations: {len(annealing_iterations)}")
print(f"Colors used: {len(set(get_node_attributes(annealing_best, 'color').values()))}")
Best solution value: 1
Iterations: 1000
Colors used: 3

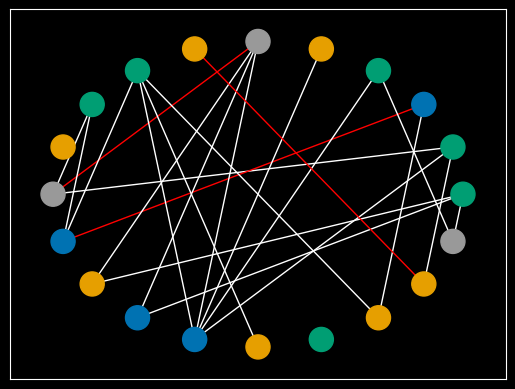

show_graph(annealing_best)
def random_coloring(graph: Graph, iterations: int) -> tuple[Graph, float]:
best: Graph = graph.copy()
best_value: float = fitness(graph)
for _ in range(iterations):
new_graph: Graph = graph.copy()
for node in new_graph.nodes:
new_graph.nodes[node]["color"] = choice(COLORS)
new_value: float = fitness(new_graph)
if new_value < best_value:
best = new_graph.copy()
best_value = new_value
return best, best_value
random_best, random_best_value = random_coloring(graph, len(annealing_iterations))
print(f"Best solution value (random): {random_best_value}")
print(f"Iterations (random): {len(annealing_iterations)}")
print(f"Colors used (random): {len(set(get_node_attributes(random_best, 'color').values()))}")
Best solution value (random): 7
Iterations (random): 1000
Colors used (random): 4

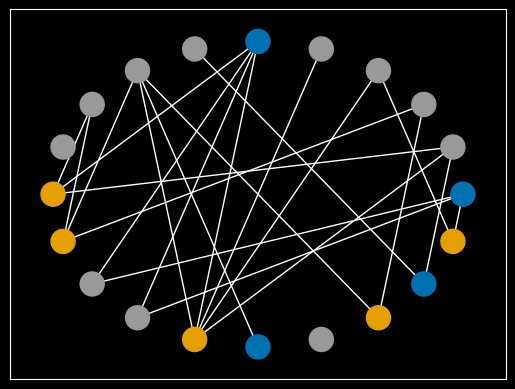

show_graph(random_best)
